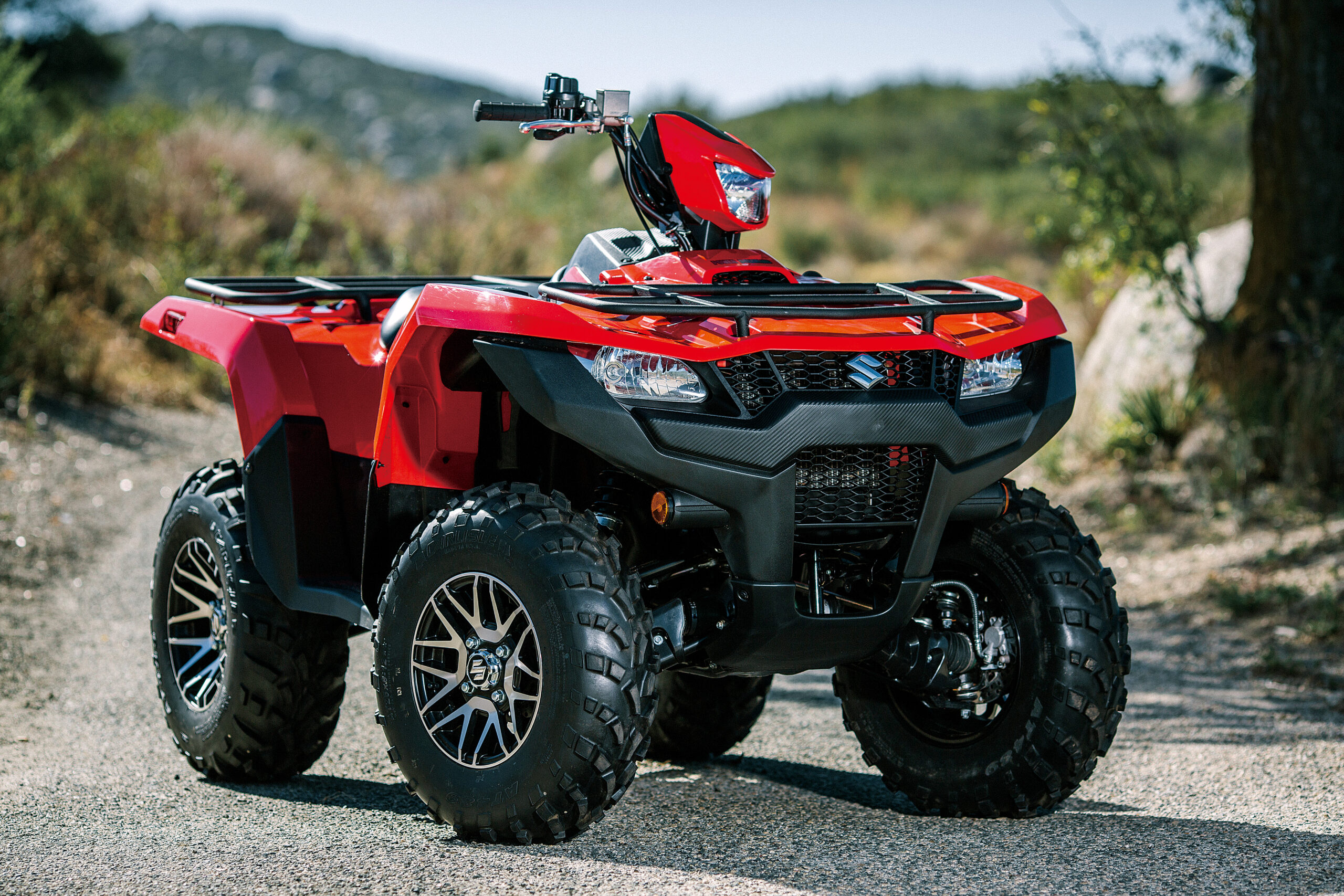

KINGQUAD 750AXi 4×4

Compare

Description

  • ENGINE :

  • Engine : 722cc (44.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, DOHC single cylinder
  • Bore x Stroke : 104.0 mm x 85.0 mm (4.094 in. x 3.346 in.)
  • Compression Ratio : 9.9:1
  • Fuel System : Suzuki electronic fuel injection
  • Starter : Electric
  • Lubrication : Wet sump
  • DRIVETRAIN :

  • Transmission : Automatic variable ratio (V-belt), with high/low-range, and reverse
  • Clutch : Dry shoe, automatic, centrifugal type
  • Driven Wheels : 2WD, 4WD and 4WD Differential Lock
  • Final Drive : Shaft drive
  • CHASSIS :

  • Suspension Front : Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
  • Suspension Rear : Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
  • Brakes Front : Disc brakes, twin rotors
  • Brakes Rear : Sealed oil-bathed multi-disc
  • Tires Front : AT25 x 8-12**, tubeless type x 2
  • Tires Rear : AT25 x 10-12**, tubeless type x 2
  • Fuel Tank Capacity : 17.5 L (4.6 US gal.)
  • Color : Flame Red or Terra Green
