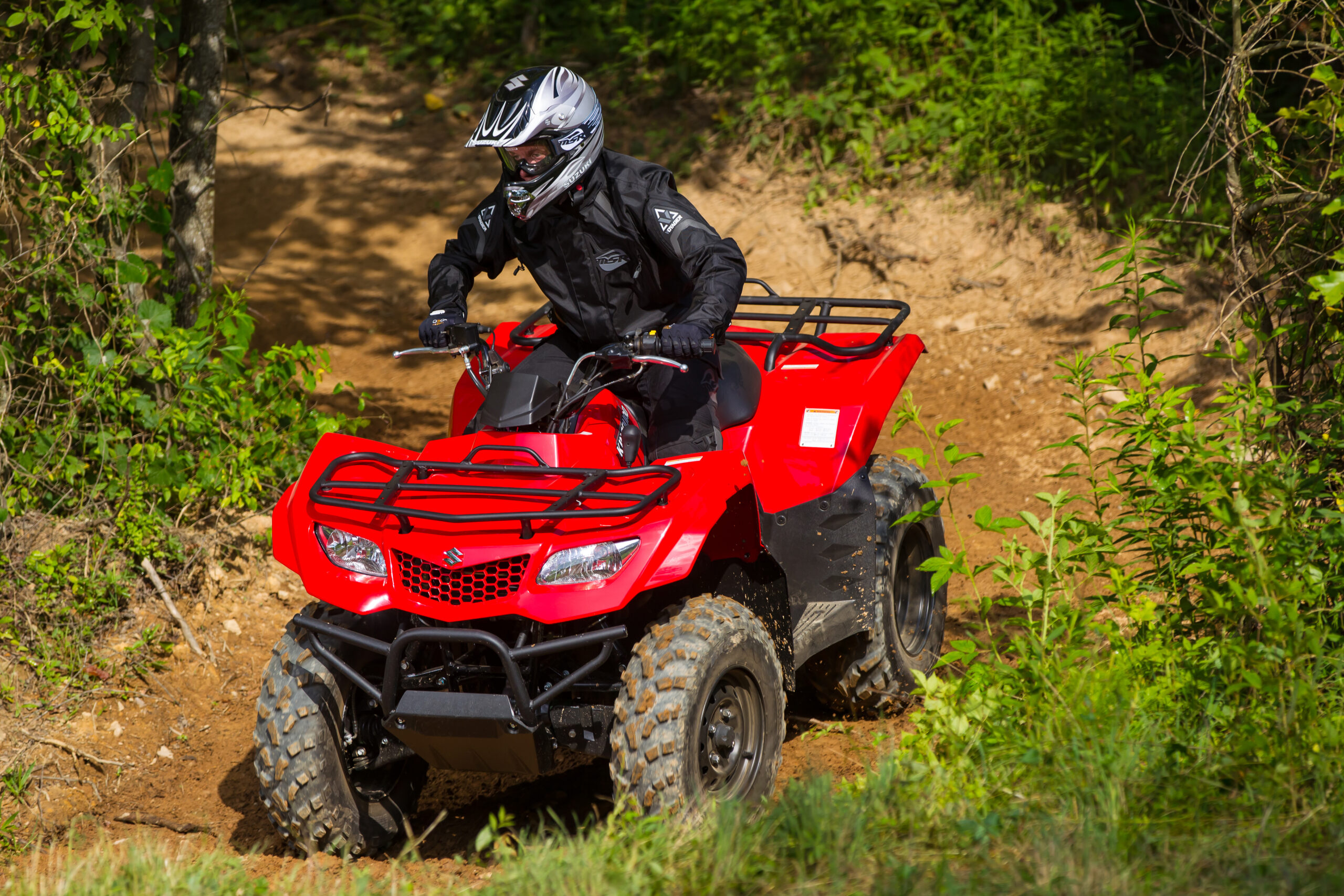

KINGQUAD 400ASi 4×4

Compare

Description

Specifications

Engine Type: 4-stroke, 1-cylinder, air-cooled with SACS, SOHC

Engine Displacement: 376 cm3 (22.9 cu. in)

Bore x Stroke : 82.0 mm x 71.2 mm (3.2 in x 2.8 in)

Transmission : CVT, 2-speed forward with reverse

Overall Length : 2,060 mm (81.1 in)

Overall Width : 1,145 mm (45.1 in)

Overall Height : 1,220 mm (48.0 in)

Wheelbase : 1,270 mm (50.0 in)

Ground Clearance : 250 mm (9.8 in)

Seat Height : 840 mm (33.1 in)

Curb Mass : 287 kg (633 lbs)

Suspension Front : Independent, double wishbone, coil spring, oil damped

Rear : Swingarm type, coil spring, oil damped

Brakes Front : Disc, twin

Rear : Drum

Tires Front : AT25x8-12☆☆ , tubeless

Rear : AT25x10-12☆☆ , tubeless

Fuel Tank Capacity : 16.0 L (4.2/3.5 US/Imp gal)
